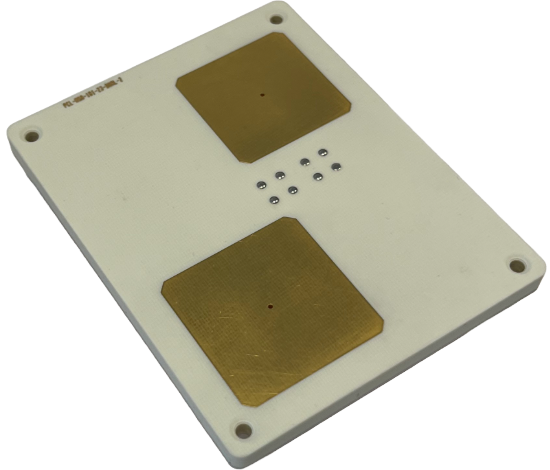

SAS-2 Dual S-band Patch Antenna
The Satlab SAS-2 dual S-band patch antenna is engineered for operation within the ITU-designated space operation S-band frequencies while taking up only 1U of surface area.
Features
- RHCP RX patch covering 2025–2110 MHz with SMA connector
- RHCP TX patch covering 2200-2290 MHz with SMA connector
- VSWR: < 1.5:1
- Weight: 107 g
Key Parameters
| Parameter | Specification |
|---|---|
| Frequency range RX | 2025 to 2110 MHz |
| Gain RX | 5.5 ± 0.3 dBi |
| HPBW RX | 87° ± 4° |
| Frequency range TX | 2200 to 2290 MHz |
| Gain TX | 6.1 ± 0.2 dBi |
| HPBW TX | 85° ± 4° |
| Dimensions | 100.0 × 80.0 × 6.8 mm |
| Mass | 107 g |
Additional Resources
Customization
Custom hardware and software requests can often be accommodated. Please see the R&D section
Price and lead time on request
