SRS-3 Full-duplex S-band Transceiver

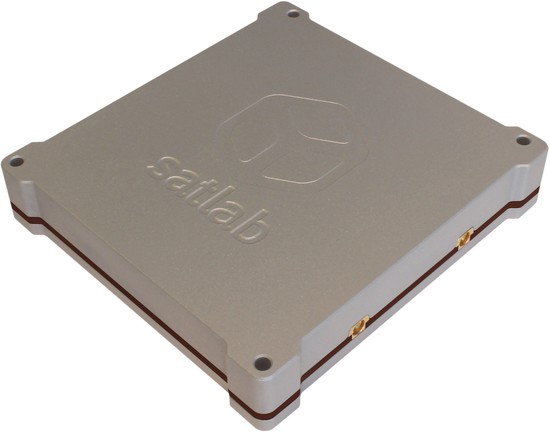

The Satlab SRS-3 is a full-duplex, low-power, S-band transceiver designed for TM & TC on micro- and nano-satellites.
The self-contained system operates on the ITU space operations S-band frequencies and features integrated transmit and receive filters, LNA and power amplifier, requiring only passive external antennas.
SRS-3 is highly configurable, with transmit and receive frequencies, bit rates, output power and framing configurations being adjustable on-orbit.
The SRS-3 has demonstrated reliable flight heritage since 2019, with over 100 units successfully delivered to customers around the world for a multitude of space missions. With a TRL of 9, it is fully qualified and operational in its intended environment.
Features
- Variable transmit symbol rate up to 512 kbps
- Variable receive symbol rate up to 128 kbps
- Configurable forward error correction and framing
- Adjustable output power up to 30 dBm with Automatic Level Control (ALC)
- On-board PA, LNA, transmit and receive filters
- CAN-bus and RS-422 interfaces using CubeSat Space Protocol (CSP)
- Ethernet interface with IP routing
- AES-256-GCM link-layer encryption and authentication
- Wide supply voltage range with over-current protection and external watchdog timer
- CubeSat Kit form factor compatible aluminum enclosure
- Delivered with source-level software support library for easy integration
Key Parameters
| Parameter | Specification |
|---|---|
| Transmitter frequency range | 2200 to 2290 MHz |
| Transmitter symbol rate | 9.6 to 512 kBd |
| Transmitter power | Adjustable 20 to 30 dBm, with ALC |
| Receiver frequency range | 2025 to 2110 MHz |
| Receiver symbol rate | 9.6 to 128 kBd |
| Receiver sensitivity | -107 dBm (<1% PER, 128 kBd, BT=0.5) |
| Modulation | GMSK |
| Supply voltage | 5 to 40 V |
| Typical power consumption (5 V input, 20℃, 30 dBm) | Awaiting frames: 550 mW Full-duplex transmit and receive: 5.0 W |
| Operating temperature | RX: -40℃ to +85℃ TX: -40℃ to +70℃ |
| Dimensions | 87.0 × 93.0 × 17.0 mm |
| Mass | 190 g |
Additional Resources
- Datasheet
- User manual, firmware and client library
- Satlab Control application
- GNU Radio blocks
- Parasolids CAD model
- STEP AP214 CAD model
Customization
Custom hardware and software requests can often be accommodated. Please see the R&D section
Price and lead time on request
