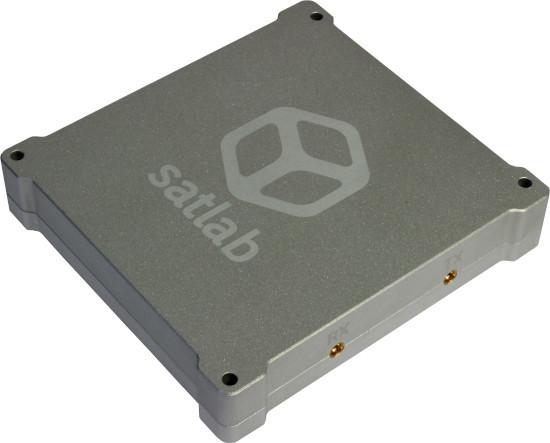

SRS-4 Full-duplex High-speed S-band Transceiver (Rev. 2)

The Satlab SRS-4 is a full-duplex S-band transceiver designed for high-speed data transfer on micro- and nano-satellites.

The transceiver operates on the ITU space operations S-band frequencies with BPSK, QPSK and 8PSK modulation and CCSDS recommended channel coding, enabling integration with both independent and commercial ground station networks.

Features

Key Parameters

ParameterSpecification
Transmitter frequency2200 to 2290 MHz
Transmitter modulationBPSK/QPSK/8PSK, 10 kBd to 5 MBd
Transmitter power20 to 33 dBm
Receiver frequency2025 to 2110 MHz
Receiver modulationBPSK/QPSK, 10 kBd to 5 MBd
Receiver sensitivity-122 dBm (<1% PER, 100 kBd BPSK)
Input voltage5.1 to 40 V
Typical power consumption
(6 V input, 20℃)
RX: 1.5 W (5 MBd)
RX+TX: 9.1 W (5 MBd, 33 dBm output)
Operating temperatureRX: -40℃ to +85℃
TX: -40℃ to +70℃
Dimensions93.0 mm × 87.2 mm × 18.0 mm
Mass253 g

Rev. 1 vs Rev. 2

See below the main differences between Rev. 1 and Rev. 2.

ParameterRev. 1Rev. 2
Input voltage5.1 to 28.8V5.1 to 40 V
Transmit amplifiersLDMOS TechnologyGaN Technology
ConnectorsHarwin Gecko LatchingHarwin Gecko Screw‑Lock
Typical power consumption
(6 V input, 20℃, 33 dBm)
10.8 W9.1 W

Flight Heritage

The SRS-4 has flight heritage since 2021, with over 400 units successfully delivered to customers around the world. Rev. 2 is an evolution of the same design, with changes limited to the transmit amplifiers and the connectors. The FPGA, microcontroller, transceiver and memories are unchanged, and the updated design has been subject to a new qualification campaign, including TID and SEE testing.

Additional Resources

Customization

Custom hardware and software requests can often be accommodated. Please see the R&D section


Price and lead time on request
